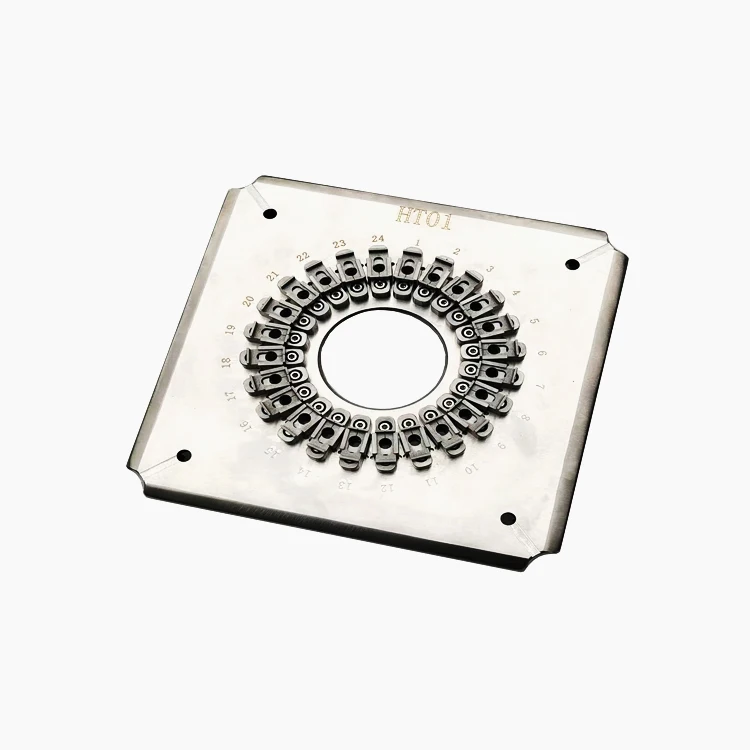

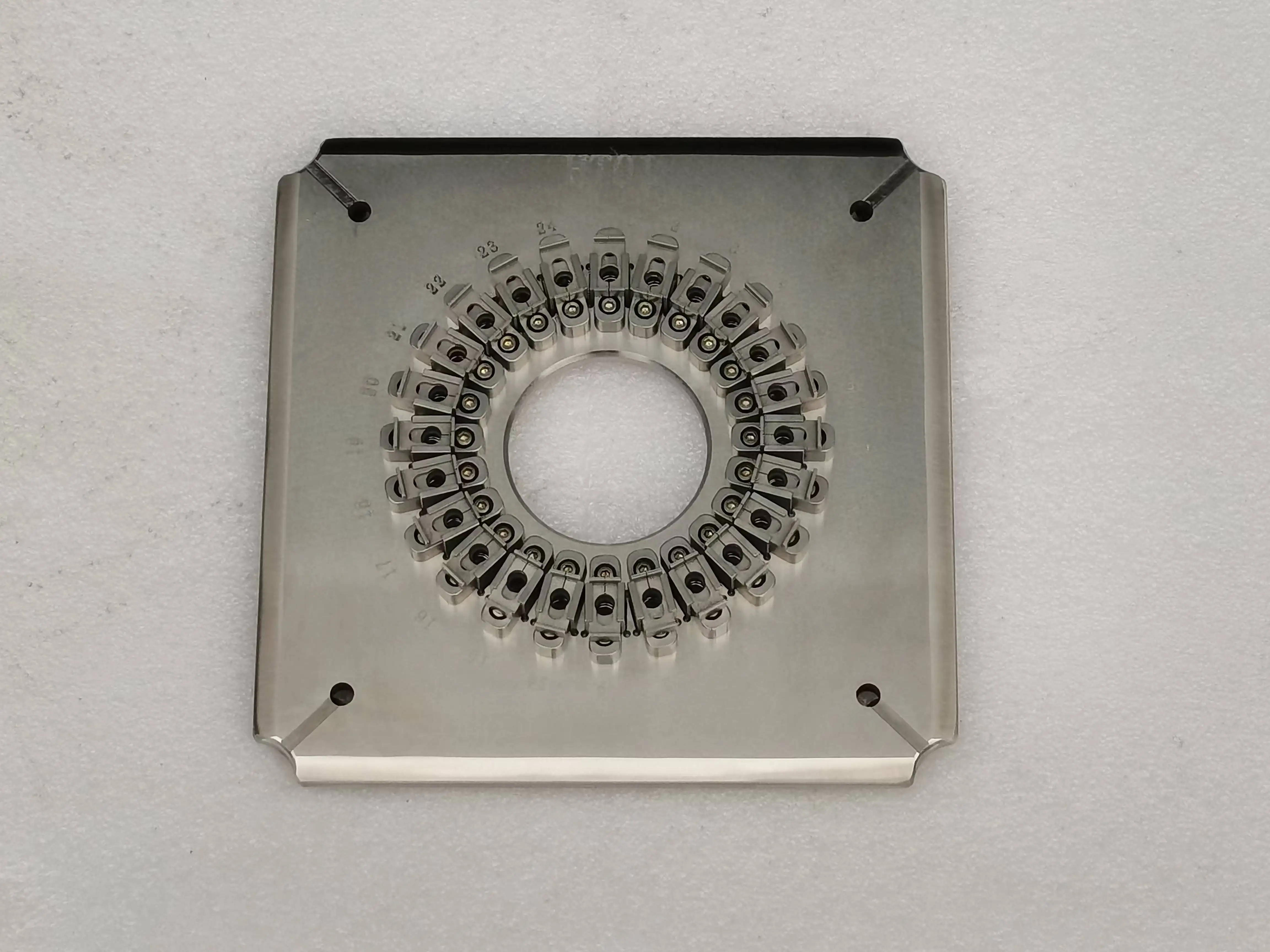

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight

Name: Hardened Stainless Steel S136 Polishing Fixture for HFBR4501ZHFBR4511Z with 2 Year Warranty and 13 kg Net Weight
Brand: chuanglixun
Price: 549.23 USD

Wholesale Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight from china suppliers

Model Number : HFBR 4501Z/HFBR 4511Z, HFBR 4501Z/HFBR 4511Z

Place of Origin : Guangdong, China

Brand Name : chuanglixun

Certification : RoHS

MOQ : 1

Price : $549.23-592.12

Net Weight : 1.3 kg

No. of Fiber : 1

Material : Hardened Stainless Steel S136

Dimensions : 174mmx174mmx26mm

Insertion loss : ≤2.3dB

Wave length : 650nm

Operating Temperature : -40°C ~ + 70°C ,-55°C ~ + 85°C

Attenuation : ＜180dB/km

Gross Weight : 1.5 kgs

Polishing capacity : Max 24 connectors in one cycle

First pass yield : 98%～100%

Interference pass rate : ≥ 98% (100% Typical)

Suitable machines : CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine

Fiber type : Plastic Optical Fiber

Connector models : HFBR-4501Z, HFBR-4511Z

Contact Now

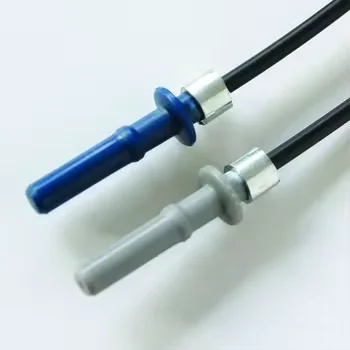

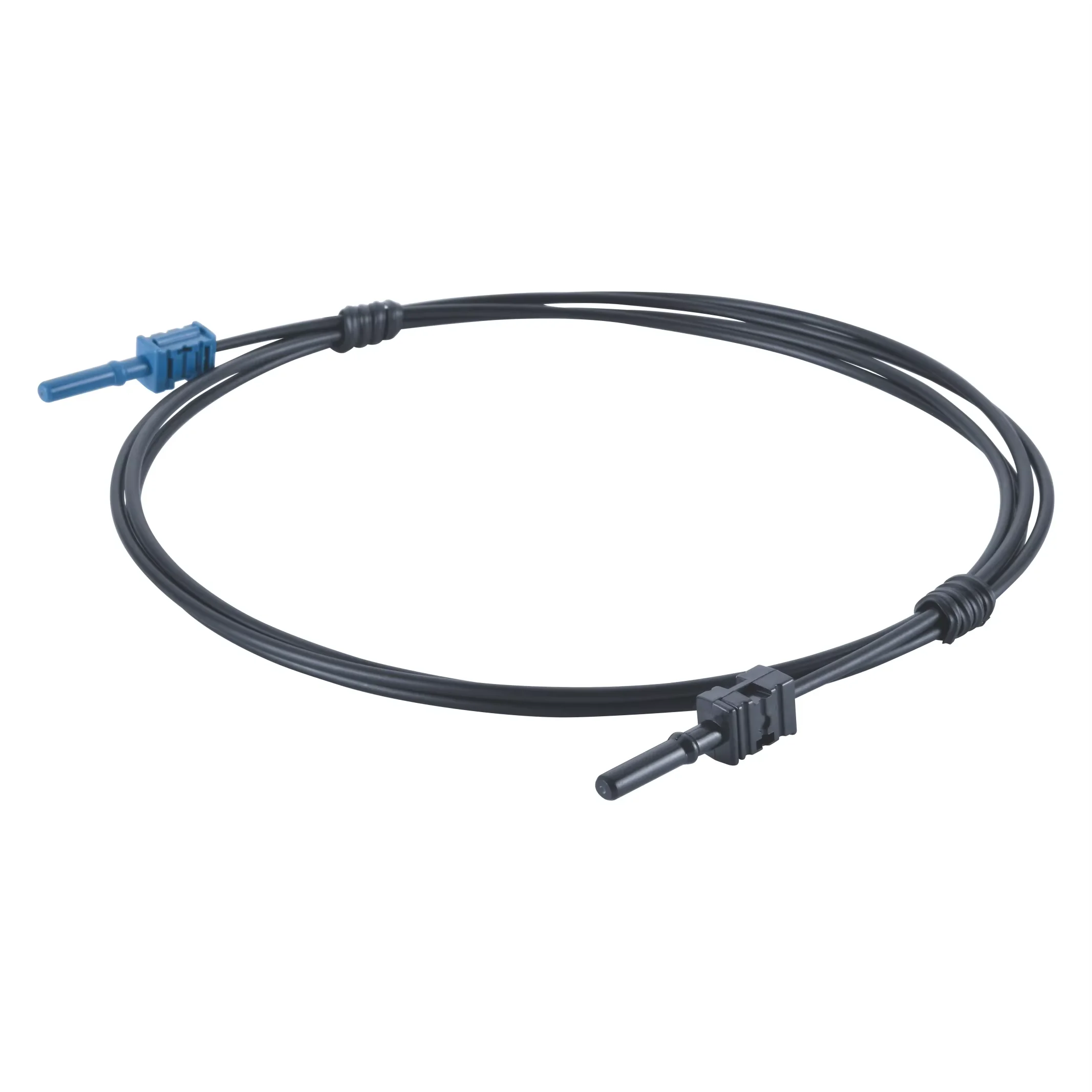

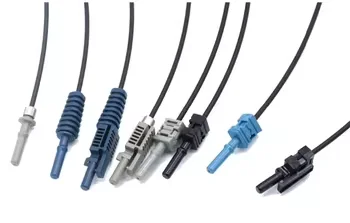

Factory custom Plastic Optical Fiber Patch Cord Avago HFBR-4501Z HFBR-4511Z connector polishing Fixture Jig

Product Description

This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of HFBR-4501Z / HFBR-4503Z / 4506z / 4516z, etc, and also according to the customer request.

Features

1. Designed for HFBR 4501Z/HFBR 4511Z plastic optical fiber connectors. 2. Easy to change jigs, simple and flexible to operate. 3. High efficiency, polishing Max 24 connectors in one cycle.The first pass yield for end face quality reach 98%～100% 4. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), 5. The accessories on the fixture can be replaced, Greatly extend the service life. 6 .Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life. This fiber polishing fixture can be designed with the jig of HFBR-4501Z / HFBR-4503Z / 4506z / 4516z, etc, and also according to the customer request.

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight

specification

1. Product Name			plastic optical fiber patch cord polishing fixture
2. Model			HFBR 4501Z/HFBR 4511Z
3. Insertion loss			≤2.3dB(connection loss excluded the cable)
4. Brand			Chuanglixun
5. Wave length			650nm
6. Attenuation			＜180dB/km
7. Material			Hardened stainless steel S 136
8. Size			174mm174mm26mm
9. Net Weight / Gross Weight (kg)			1.3 kgs / 1.5 kgs
10. Suitable machines			CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines

Get a free Quotation via Us >>>GO

Company profile

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010. Is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We not only sell high-quality products and provide good after-sales service,but also provide free technical support to our customers. For the technical problems
encountered in the production of optical fiber connectors, there are good solutions.

Get a free Quotation via Us >>>GO

1.Are you a factory or a trader？

......we are factory.

2.What is your MOQ?

......MOQ 1 piece.

3.Do you provide sample services？
......Yes, we will provide samples.

4.How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5.How do we pay?

......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services？

......Yes, we provide customized services, According to customer requirements and description.
